Geochemical characteristics and sedimentary environment in source rocks of Doushantuo Formation, northern Sichuan Basin

DENG Jian, DU Chongjiao, ZHANG Lei, LIU Xu, LI Longlong

Natural Gas Exploration and Development, 2025, 48(3): 1-13. DOI: 10.12055/gaskk.issn.1673-3177.2025.03.001

野外露头	样品号	层位	岩性	TOC	Ba含量/(μg·g^-1)	Cu含量/(μg·g^-1)	Ni含量/(μg·g^-1)	Zn含量/(μg·g^-1)
绵竹清平	QP-1	陡四段	粉砂质泥岩	0.10%	204.37	15.89	26.63	31.70
	QP-2	陡四段	碳质泥岩	1.87%	371.07	30.09	17.77	16 432.70
	QP-3	陡四段	碳质泥岩	1.52%	781.35	55.94	71.45	431.29
	QP-4	陡四段	粉砂质泥岩	0.68%	64.02	5.88	10.76	68.88
宁强阳平关	YPG-3	陡二段	粉砂质泥岩	0.25%	929.50	43.50	52.90	138.26
	YPG-5	陡二段	粉砂质泥岩	0.41%	436.20	49.86	47.40	123.23
	YPG-7	陡三段	粉砂质泥岩	0.21%	913.82	27.17	19.56	50.20
	YPG-9	陡四段	粉砂质泥岩	0.96%	464.19	38.68	50.96	158.91
	YPG-11	陡四段	粉砂质泥岩	0.45%	547.33	31.40	47.38	115.07
	YPG-13	陡四段	粉砂质泥岩	0.30%	470.23	52.61	65.27	138.26
	YPG-15	陡四段	钙质泥岩	0.38%	423.05	26.00	45.11	93.66
城口高燕	GY-43	陡四段	碳质泥岩	4.08%	5 466.89	27.38	30.78	4.63
	GY-28	陡四段	碳质泥岩	6.64%	6 963.19	28.57	10.59	19.61
	GY-24	陡四段	碳质泥岩	1.26%	1 863.41	14.02	12.62	28.90
	GY-18	陡四段	碳质泥岩	3.13%	3 420.53	13.64	6.82	4.71
	GY-11	陡四段	泥岩	1.70%	1 690.91	15.13	20.44	17.81
镇巴小洋坝	XY-42	陡四段	泥岩	0.41%	489.90	35.19	25.87	51.74
	XY-35	陡四段	粉砂质泥岩	0.50%	548.28	12.93	0.61	9.34
	XY-29	陡四段	粉砂质泥岩	0.48%	796.52	42.21	19.81	39.64
	XY-17	陡四段	泥岩	0.69%	902.90	32.98	1.23	18.38

Table 2 Characteristics of trace elements in Doushantuo Formation, northern Sichuan Basin

Other figure/table from this article

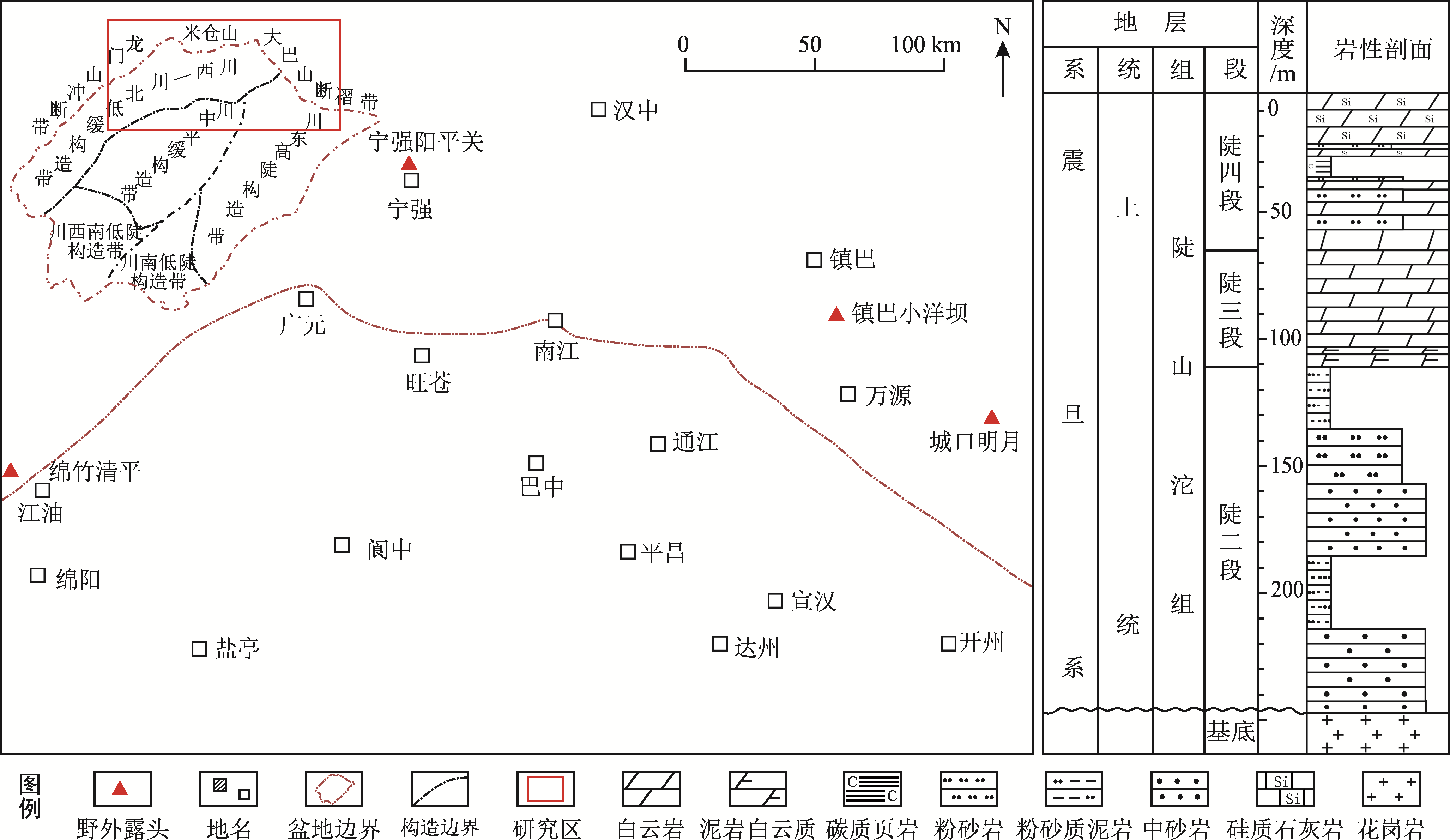

Fig. 1 Geographic location of northern Sichuan Basin and synthetic histogram of Sinian strata in northern basin

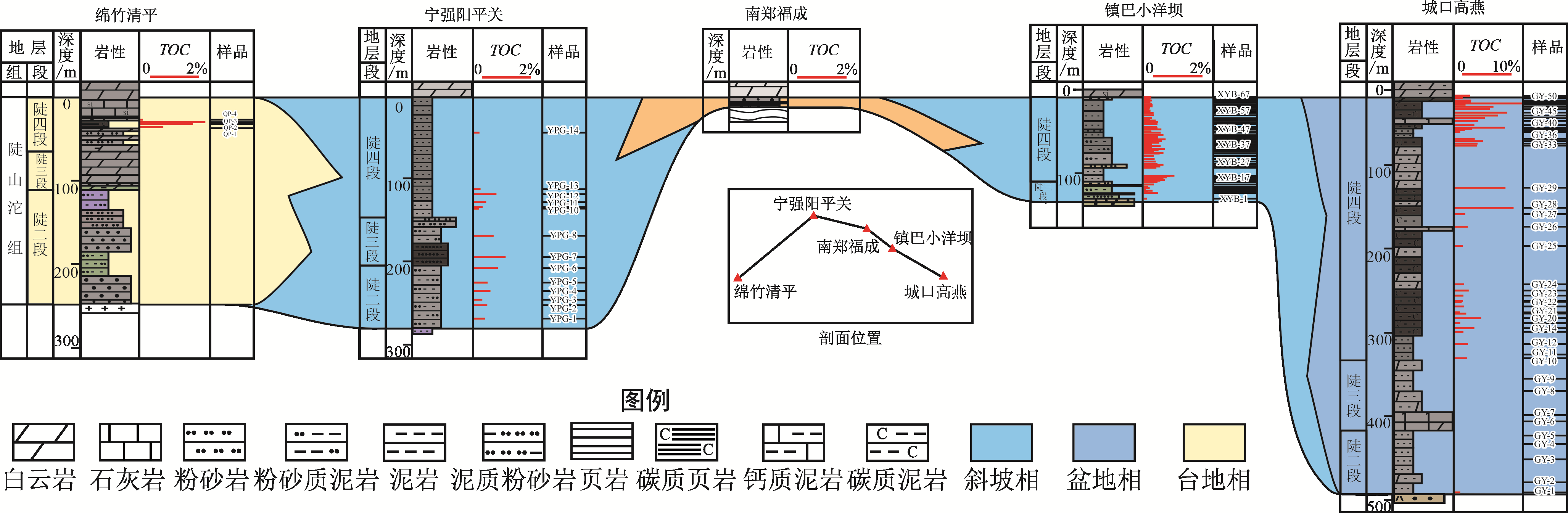

Fig. 2 Cross-well of Doushantuo Formation individually in Qingping town of Mianzhu city, Yangpingguan town of Ningqiang county, Fucheng town of Nanzheng county, Xiaoyangba village of Zhenba county, and Gaoyan town of Chengkou county
Fig. 3 Sedimentary characteristics of Doushantuo Formation in northern Sichuan Basin
Fig. 4 Maceral characteristics of kerogen among shale in Doushantuo Formation, northern Sichuan Basin
Table 1 Organic geochemical characteristics in source rocks of the Sinian Doushantuo Formation, northern Sichuan Basin

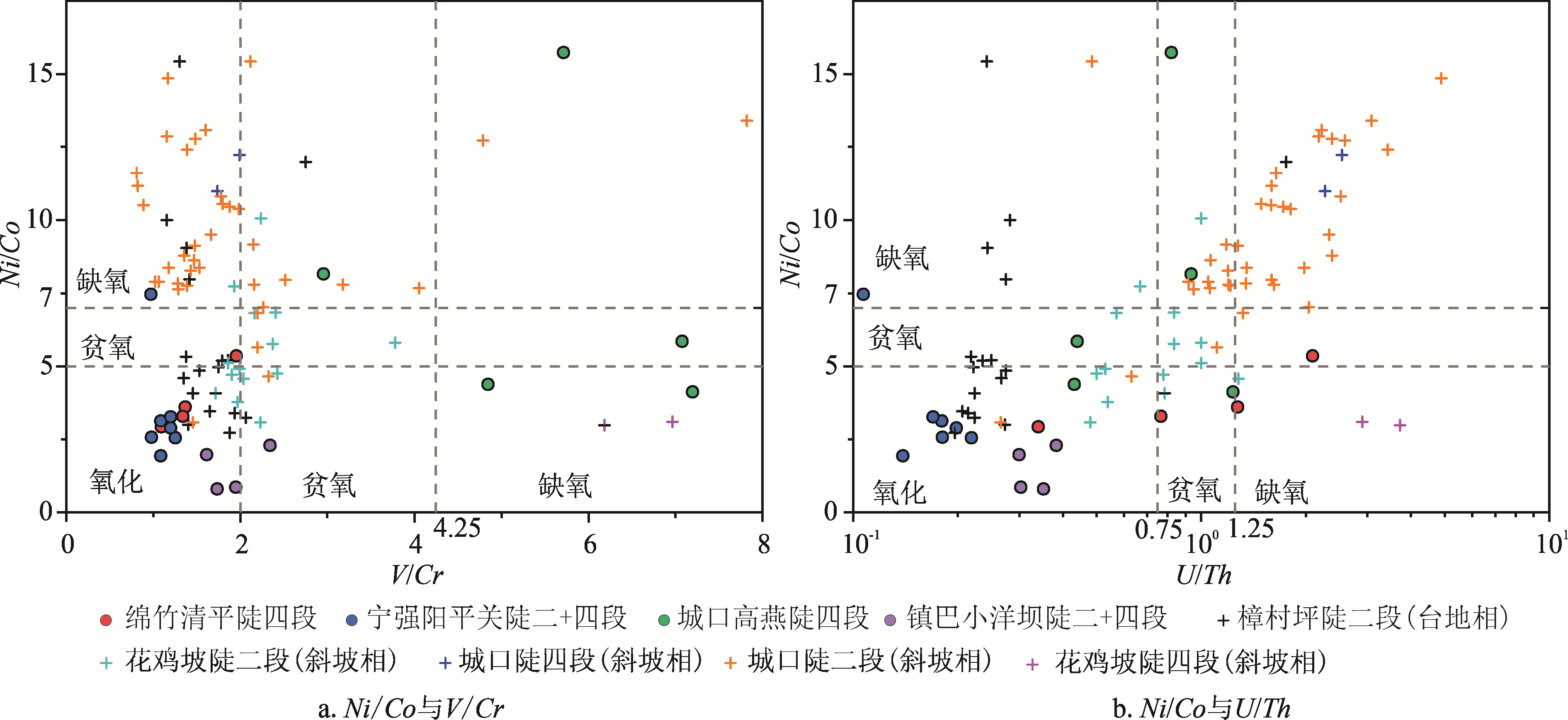

Fig. 5 Crossplots of elemental ratio in shale of Doushantuo Formation, northern Sichuan Basin (the data for Zhangcunping, Huajipo and Chengkou from Ref. 24)

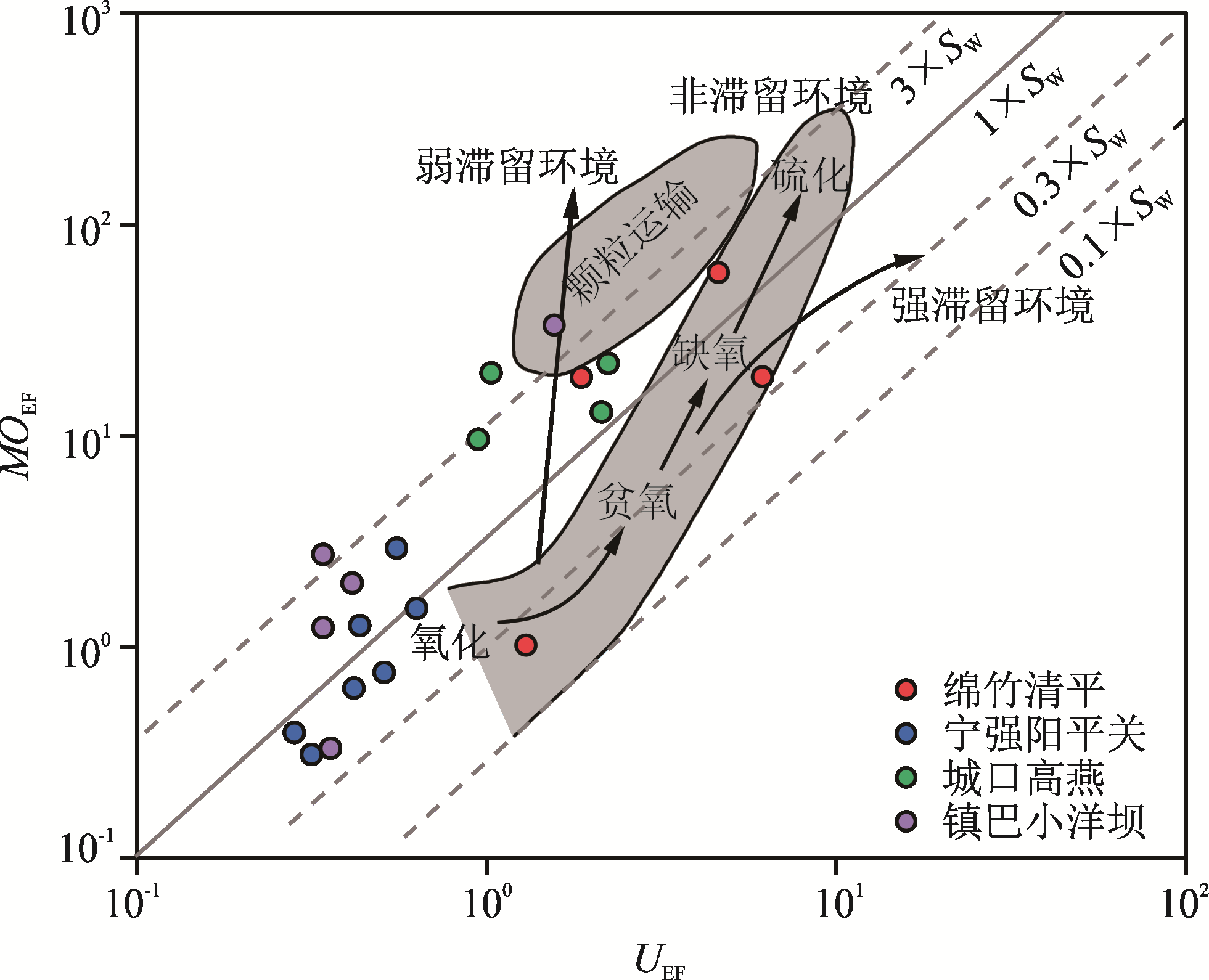

Fig. 6 A crossplot of Mo_EF and U_EF in shale of Doushantuo Formation, northern Sichuan Basin (base map from Ref. 23)

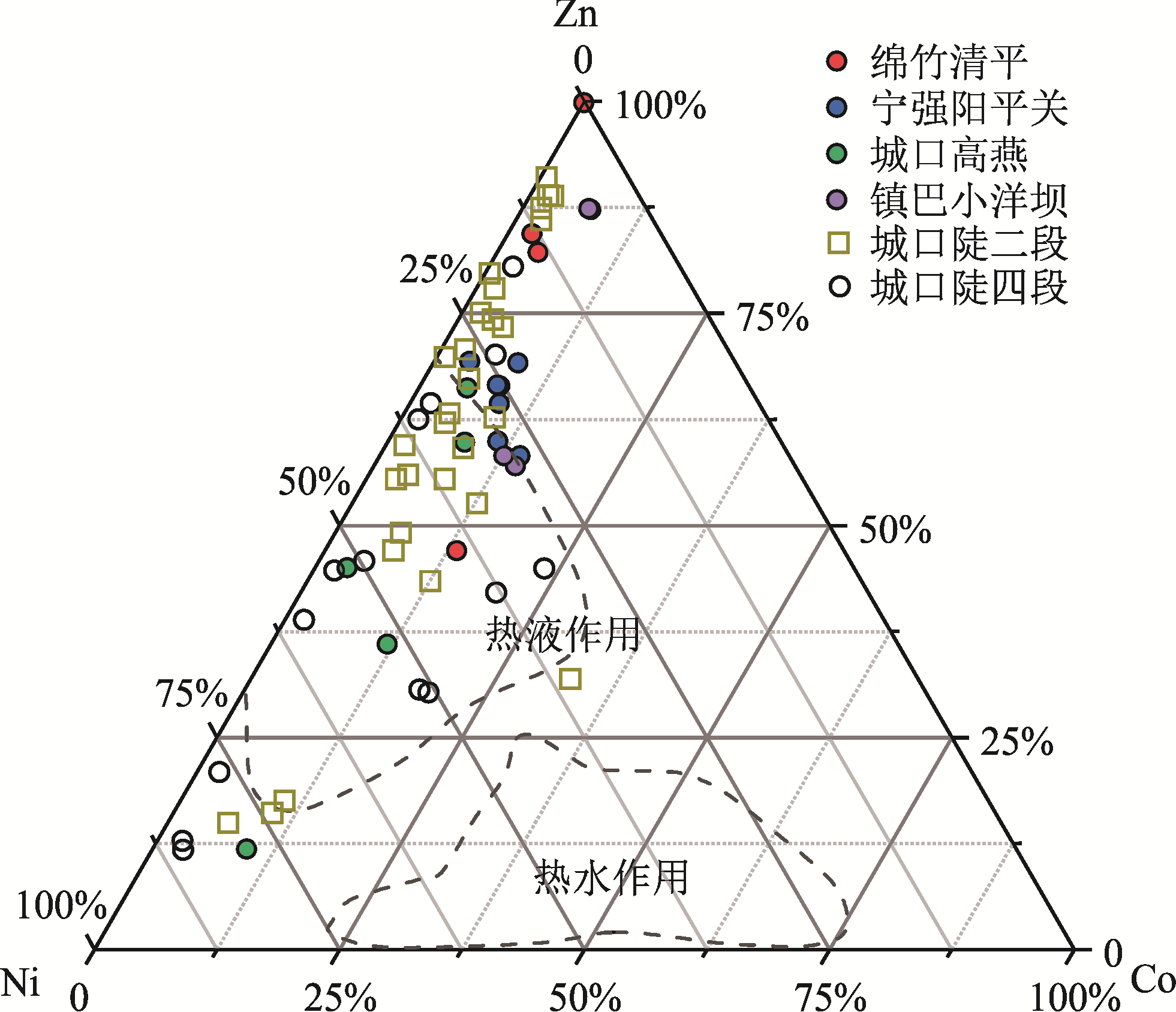

Fig. 7 A chart to discriminate Ni-Co-Zn sedimentary setting in Doushantuo Formation, northern Sichuan Basin (modified from Ref. 30, and some data from Ref. 31)

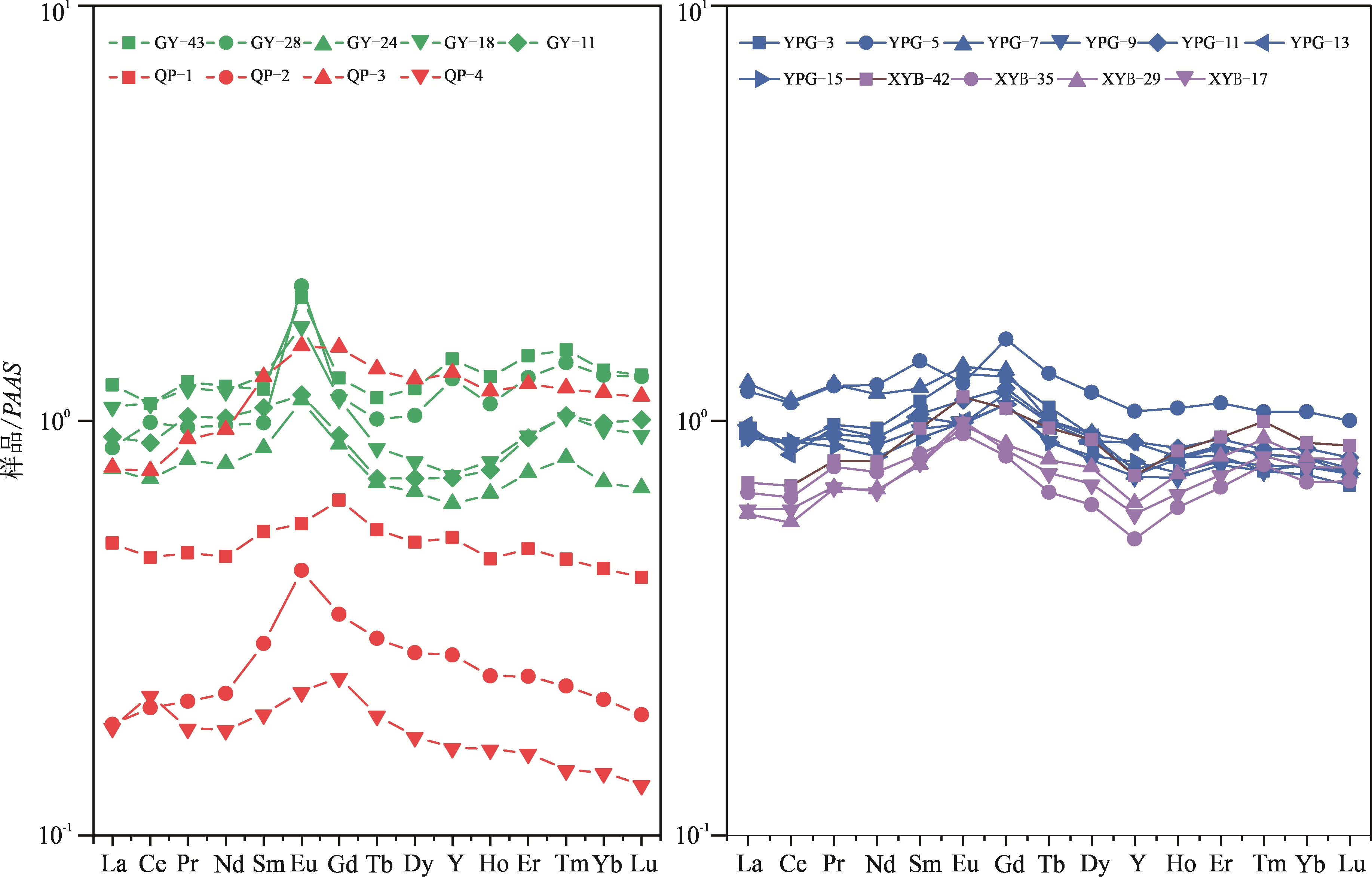

Fig. 8 PAAS normalized dispersion of REEs in samples from Doushantuo Formation, northern Sichuan Basin

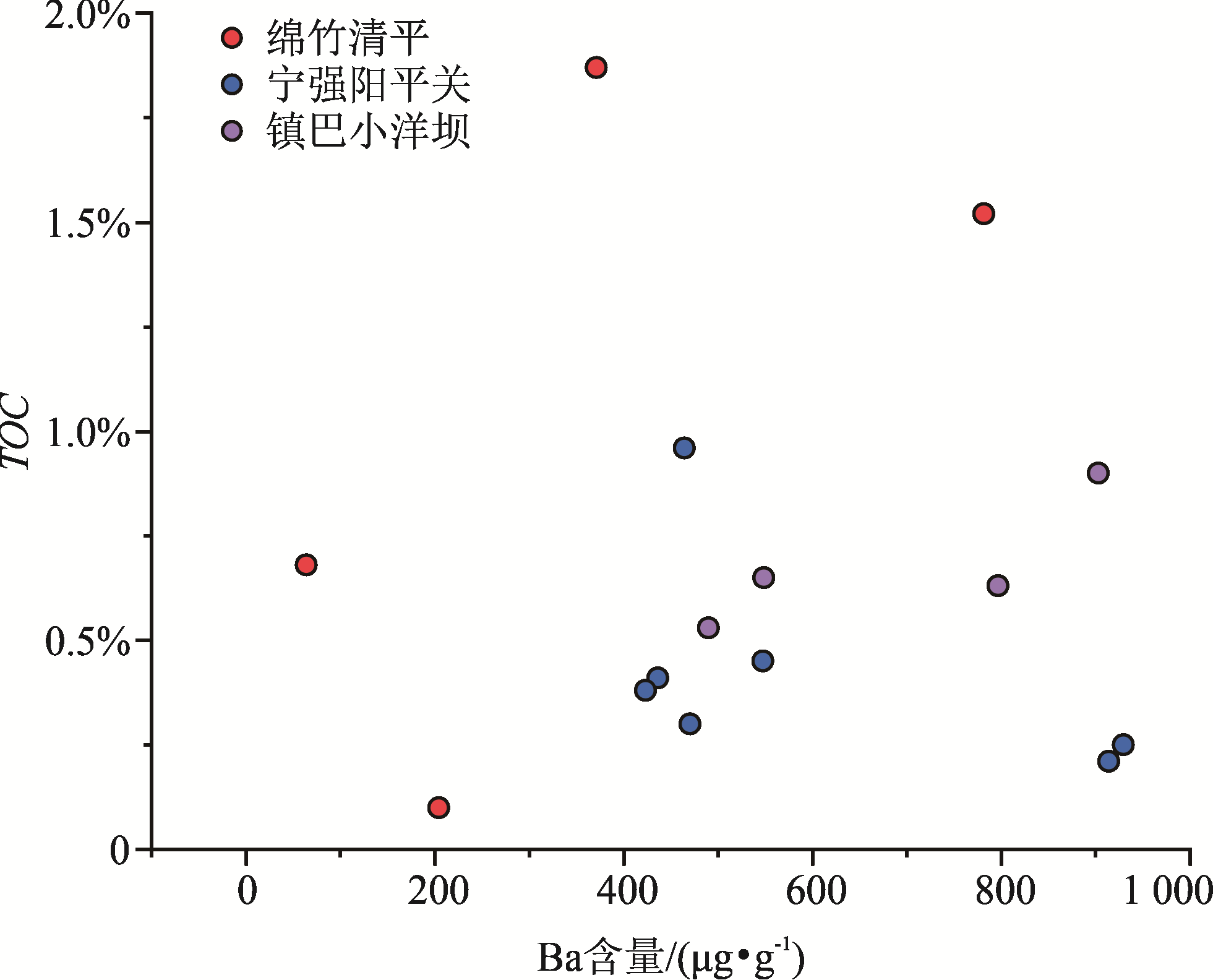

Fig. 9 A crossplot of TOC and Ba in shale of Doushantuo Formation, northern Sichuan Basin

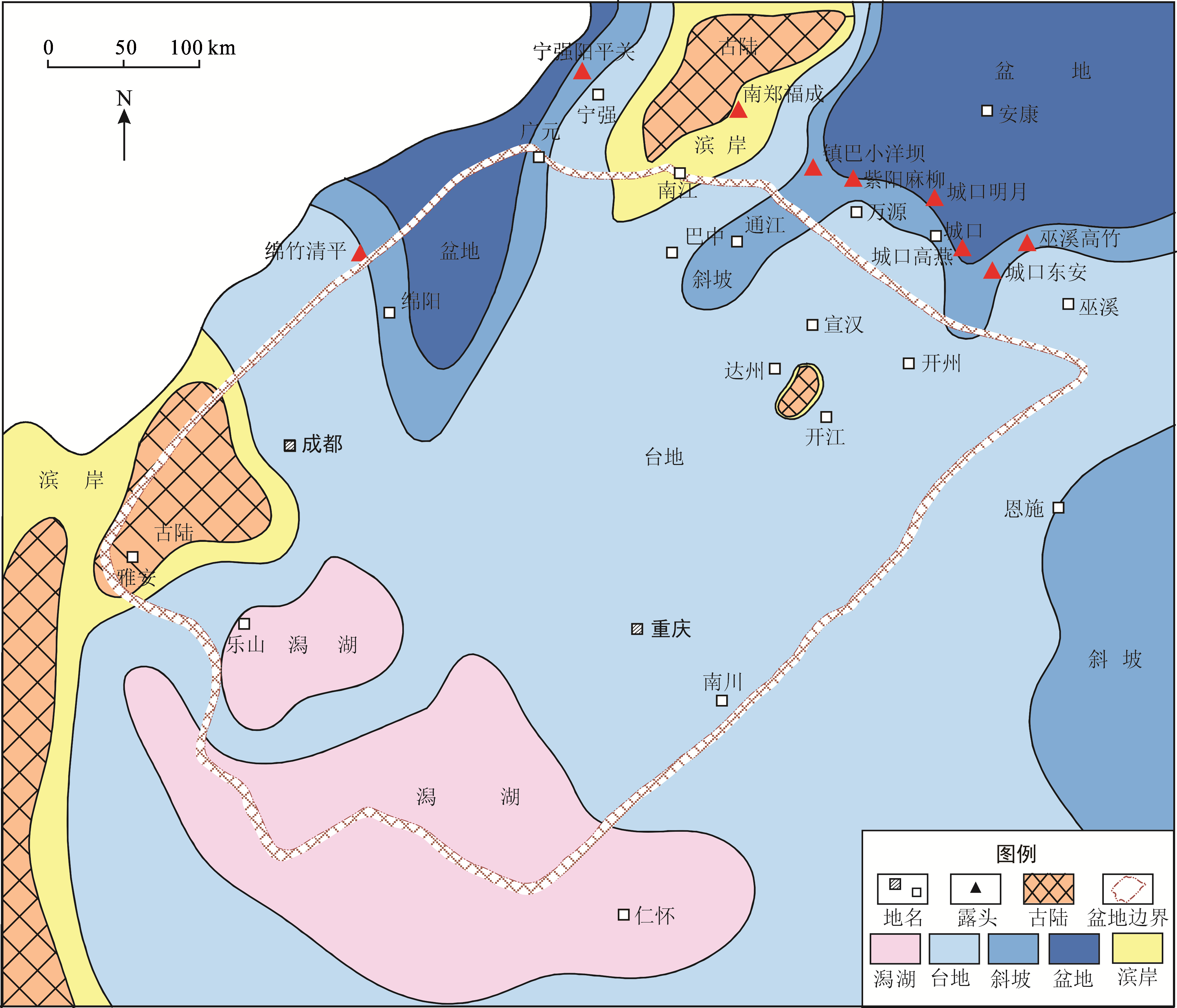

Fig. 10 Paleogeography of the Sinian Doushantuo Formation in Sichuan Basin and its periphery

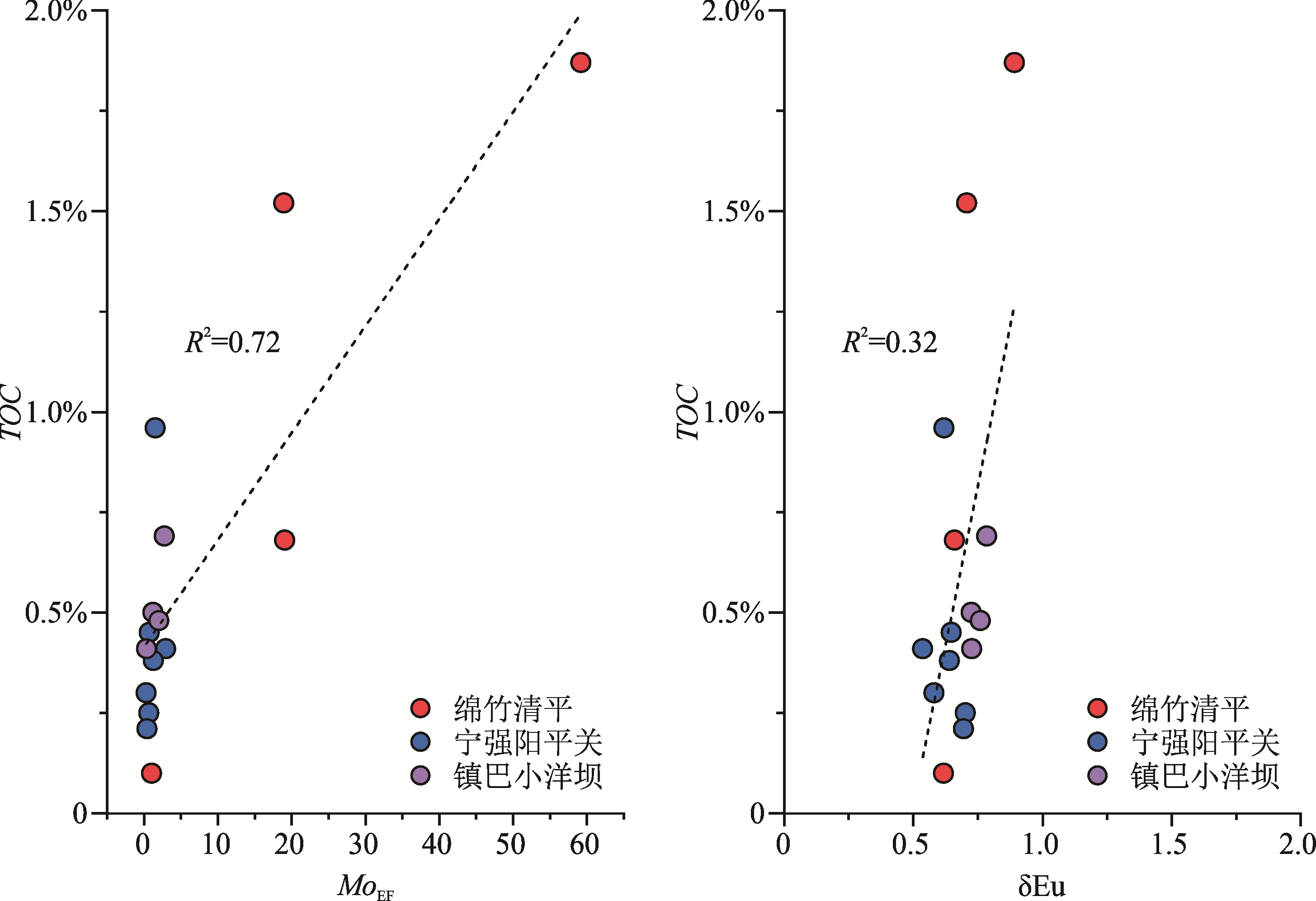

Fig. 11 Crossplots of TOC and δEu as well as TOC and Mo_EF in shale of Doushantuo Formation, northern Sichuan Basin
